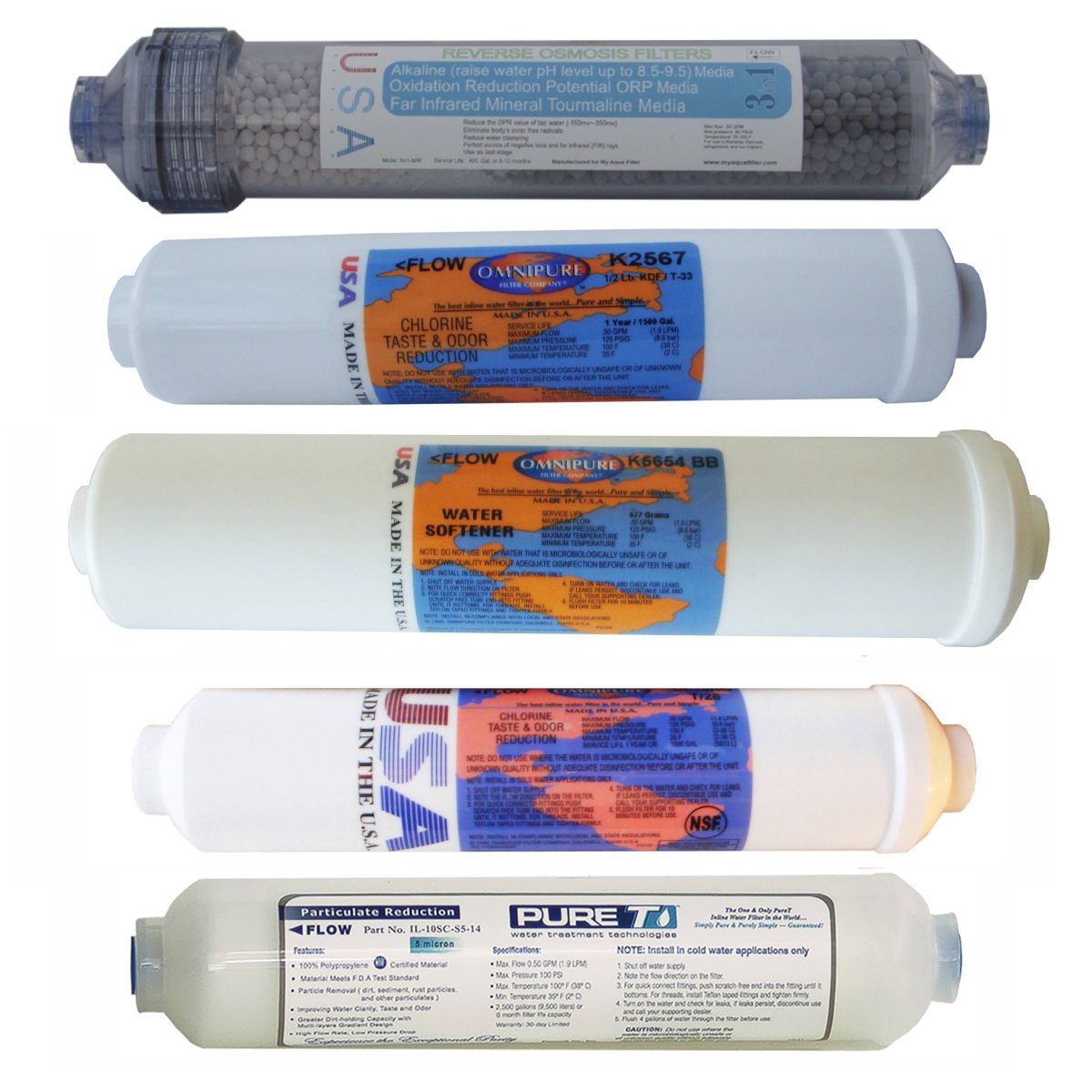

5 Filter Set for 5-stage Heavy Duty Countertop RO Systems, including Sediment, T28, Softener K5654-BB, antibacterial KDF-55, and 3in1 Alkaline inline filters. Compatible with most 5 Stage portable/countertop RO purification systems. Set includes 5 filters:
- 1st stage: Premium Quick-Connect 5 micron sediment filter. Dust and rust particles are trapped here in a filter which also extends the life of the system and the membrane.
- 2nd stage: Premium USA made Quick-Connect T28 coconut activated carbon filter
- 3rd stage: Reverse Osmosis Membrane (not included)
- 4th stage: Premium Omnipure Made K5654-BB Softening filter
- 5th stage: Premium Antibacterial K2567-BB filter (KDF-55/T33)
- 6th stage: Premium 3in1 Alkaline post filter. Increase pH level to 8-9.5. Content 4 media: alkaline, ORP, Tourmaline & Calcite media. The filter is filled with the multifunctional mineral balls. ORP ceramic balls are made of natural nonmetal mineral tourmaline, high-grade clay added with other natural healthcare powders, such as negative ion powder, germanium powder, etc. Also, this filter reduces water Oxidant Reduction Potential to -50mv~-150mv.
You can choose one out of 3 options:
- Filter set without quick connect fitting. It may take 30-40 minutes to replace all filters. Difficulty level – moderate.
- Filter set with preset new quick connect fitting. It may take 30-40 minutes to replace all filters. Difficulty level – moderate.
- Assembly (include new replacement filter set, fitting, clips, new RO membrane, and membrane housing). The new assembly allows replacing the entire assembly within 1 minute without hassle. You will need re-connect two tubings (from kitchen diverter to assembly). Difficulty level – easy. Time – 1 min.
Sample assembly pictures for 4, 5, and 6 stages Countertop Reverse Osmosis (actual assembly may be different, depends on filter set):
Specification:
| Type: | Sediment |
| Purpose: | Remove sand, silt, dirt and rust particles |
| Diameter: | 2″ |
| Fitting: | 1/4″ female |
| Service life: | 1.500 Gal |
| Length: | 10″ |
| Stage: | First |
| Housing color: | Semi-Clear |
| Man, SKU: | IL-10SC-S514 |
| Type: | T28 GAC pre-filter |
| Purpose: | Remove chlorine, chloramine, aluminum, cyanide, nitrates, cysts, pesticides, VOC. |
| Diameter: | 2″ |
| Fitting: | 1/4″ female |
| Service life: | 1.500 Gal or 8-12 months |
| Length: | 10″ |
| Stage: | Second |
| Housing color: | White |
| Man. SKU: | CL10ROT28-BB |
| Carbon Type: | T28 , Standard Coconut Shell |
| Type: | Softening Filter Cartridge |
| Purpose: | Remove impurities |
| Diameter: | 2.5″ |
| Fitting: | 1/4″ female |
| Service life: | 6-12 months |
| Length: | 11″ |
| Stage: | Forth |
| Housing color: | White |
| Man. SKU: | K5654-BB , Omnipure |
| Media Type: | Softening resin media |
| Type: | Antibacterial K2567-BB |
| Purpose: | Efficient removal of chlorine, chloramine, and organic chemicals. Antibacterial KDF-55 media |
| Diameter: | 2″ |
| Fitting: | 1/4″ female |
| Service life: | 1.500 Gal or 8-12 months |
| Length: | 10″ |
| Stage: | Fifth |
| Housing color: | White |
| Man. SKU: | K2567BB , Omnipure |
| Media Type: | KDF-55 (1/2 lbs) , T33 |
| Type: | 3-in-1 Alkaline |
| Purpose: | Alkaline Oxidant Reduction Potential ORP inline filter. Increase pH level to 8-9.5. The filter is filled with the multifunctional mineral balls. ORP ceramic balls are made of natural nonmetal mineral tourmaline, high-grade clay added with other natural healthcare powders, such as negative ion powder. |
| Diameter: | 2″ |
| Fitting: | 1/4″ female |
| Service life: | 1.000 Gal or 6-12 months |
| Length: | 10″ |
| Stage: | Sixth |
| Housing color: | Semiclear |
| Man. SKU: | MAF-3in1 |
| Media Type: | Different alkaline/mineral media |
Compatible SKU: 006-BPSET, 006-BPSET2
